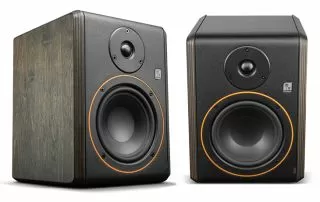

The Palmer STUDIMON 5 is an active 5" nearfield studio monitor of reference class. It is essential for any studio to ensure mixes are accurate and reproduced with the highest dynamics and impulse fidelity. The STUDIMON 5 boasts a bi-amping power amplifier for superior sound quality.
Equipped with dual 30-watt class-AB power amplifiers, the STUDIMON 5 offers exceptional sound in a compact form. It features a magnetically shielded 5" woofer with rubber surround and a 0.75" tweeter with a silk dome, complemented by a rear reflex port for enhanced bass response.
For uninterrupted signal transmission, it provides balanced XLR and 6.35 mm stereo jack inputs, along with a convenient volume control. Its sleek design integrates smoothly with other MONICON series products from Palmer.
Low/mid driver dimensions - 5"
Woofer size - 127 mm
Woofer magnet - 80 mm Ferrit
Woofer brand - Custom-made
HF driver dimensions - 0.75"
HF driver size - 19 mm
HF driver magnet - 28 mm Neodym
HF driver brand - Custom-made
Power amplifier (Class A) - Class A/B
Dispersion (H x V) - 120 ° x 120
RMS - 2 x 30 W
Frequency response - 70 - 20.000 Hz
Crossover frequency - 2500 Hz
Max. SPL - 110 dBU @ 1 kHz dB
Signal-to-noise ratio - 85 dB
Protection circuits - Overtemperature, short circuit
Input impedance - 10,000 Ohm(s)
Controls - mains switch (on/off) , volume control
Indicators - orange (LED)
Line input connectors - 6.3 mm stereo jack (balanced), XLR (balanced)
Operating voltage - Switching power supply
Operating voltage - 100 V AC - 240 V AC, 50 - 60 Hz
Cabinet material
Birch Plywood, MDF
Housing Wall Strength - 15 mm
Cabinet surface - Laminated, stained
Cabinet color - Black
Cabinet construction - Bass Reflex
Width - 190 mm
Height - 268 mm
Depth - 215 mm
Weight - 3,95 kg
Accessories (included) - Power cord
