Capacitors for Amplifiers and Guitars

What is a Capacitor?

A capacitor is a two-terminal electronic component that stores electrical energy in an electric field. It consists of two conductive plates separated by an insulating material called a dielectric. The capacitor's ability to store charge and release it at a specific time is crucial for its function in circuits.

How Capacitors Work in Guitar Pedals:

In guitar pedals, capacitors are used to manipulate the frequency response and the overall sound of the pedal. Here are some ways capacitors affect your tone:

1. Tone Shaping (Filtering):

   • High-pass filters: Capacitors are often used to filter out low frequencies, allowing high frequencies to pass through. This is common in pedals like overdrives, fuzzes, and tone controls.
   • Low-pass filters: In other pedals, capacitors may filter out high frequencies, allowing only low frequencies to pass through, affecting the warmth or bass response of the sound.

2. Coupling and Decoupling:

   • Coupling capacitors are used to block DC (direct current) and allow AC (alternating current) signals (your audio signal) to pass through the circuit. These are typically found in the input and output stages of pedals.
   • Decoupling capacitors help stabilize power supply voltage and prevent noise or hum in the circuit by smoothing out power fluctuations.

3. Timing:

   • In modulation effects like delay, chorus, or phaser pedals, capacitors play a role in the timing and modulation frequency of the effect. They help determine how long a signal is delayed or modulated.

4. Binning and Tuning Pedals:

   • Capacitor values affect how pedals respond at different frequencies. Changing the value of the capacitor can alter the tone of an overdrive or distortion pedal, making it more brightor dark.

Types of Capacitors in Guitar Pedals:

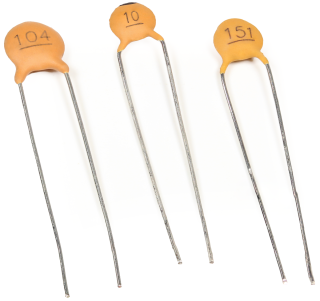

1. Ceramic Capacitors:

   • Commonly used in many guitar pedals, they are affordable and reliable. Ceramic capacitors tend to have a more noticeable color in the tone, often described as slightly harsh or bright.

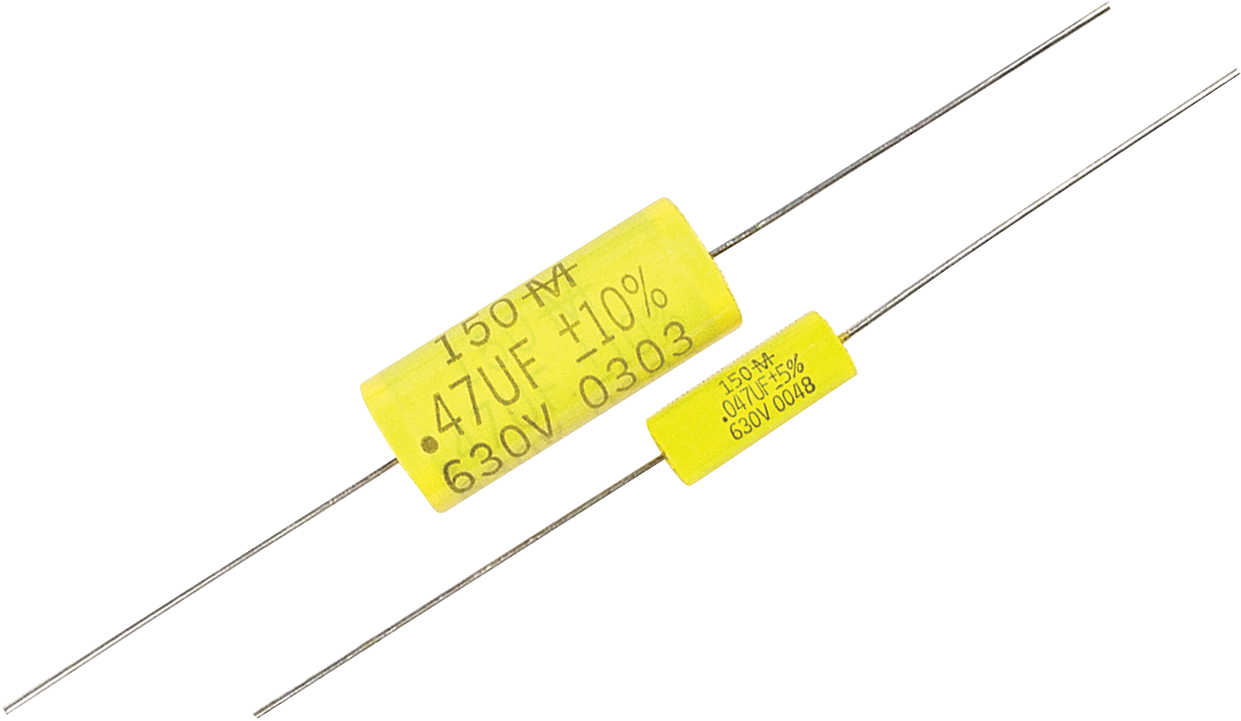

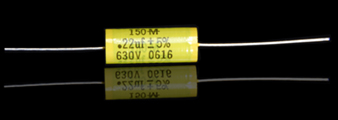

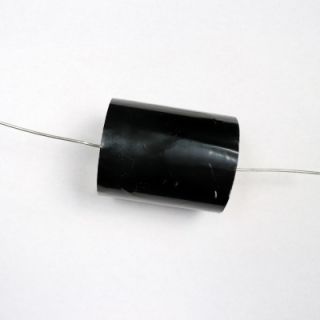

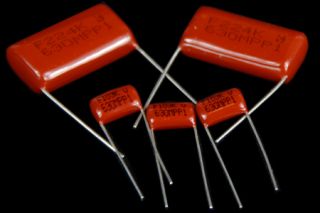

2. Film Capacitors:

   • Film capacitors (e.g., polyester, mylar) are often used in high-fidelity audio equipment due to their precise tolerance and smoother, more musical tonal qualities. Many boutique pedal builders prefer them for their tonal transparency.

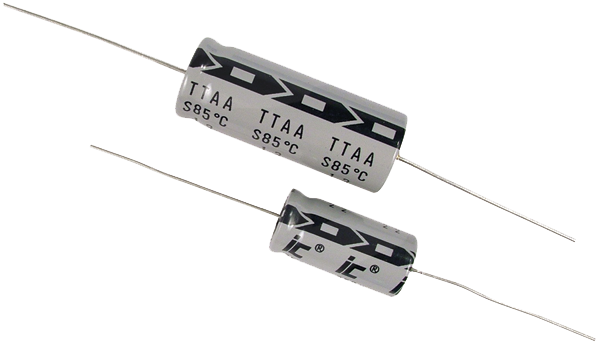

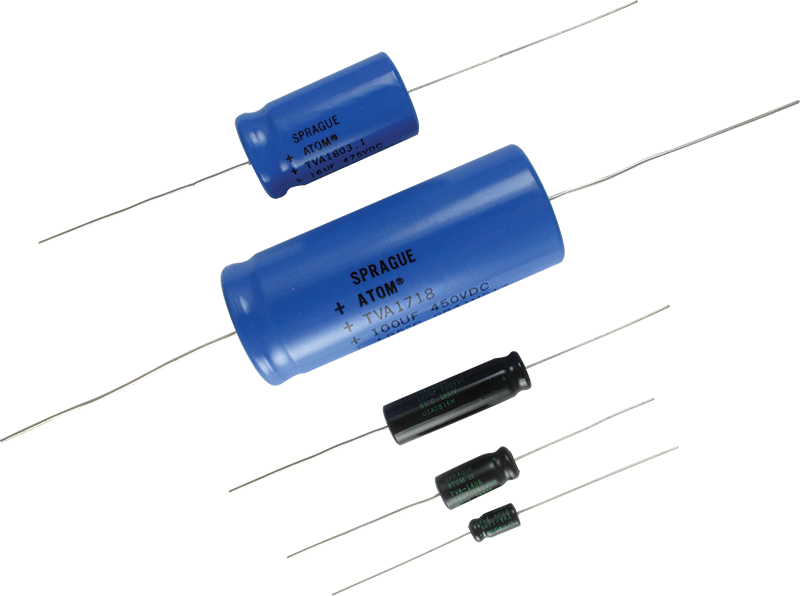

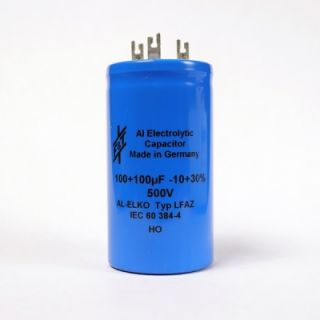

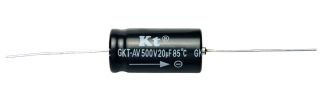

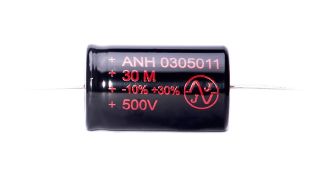

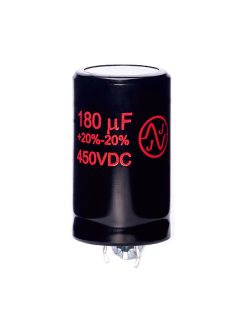

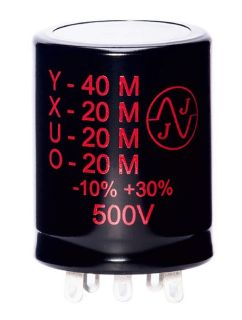

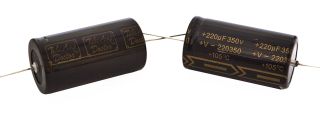

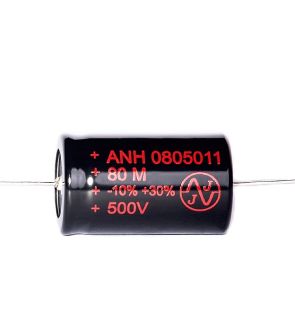

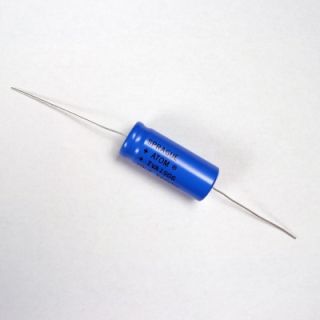

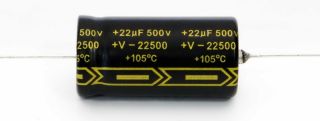

3. Electrolytic Capacitors:

   • These are typically used for higher capacitance values in power supply filtering circuits or for smoothing power to the pedal’s circuit.

4. Tantalum Capacitors:

   • More stable and reliable than electrolytic capacitors, but typically more expensive. They are often used in more specialized applications.

Capacitor Value and Tone:

• Lower Value Capacitors (e.g., 10nF, 100nF) are often used in high-pass filters or tone controls. Lower values help remove bass frequencies and can make the pedal sound brighter.
• Higher Value Capacitors (e.g., 1uF, 10uF) are used to pass more of the low frequencies, which can add warmth and depth to the tone.

Capacitors in Guitar Circuit Design:

Capacitors are also essential in guitar circuits like tone pots, pickup wiring, and guitar amps, where they influence how the signal behaves as it passes through different stages of amplification or filtering.
